CABLE TRAYS & ACCESSORIES MANUFACTURED
A) Ladder Type Cable Trays With Accessories
Pentax has inhouse design capability for suitably designing cable tray support system with typical designs for manufacturing & supplying ladder type cable trays complying to NEC & NEMA specs

Standard Range of Sizes Manufactured type cable trays manufactured are as below
Sr No. | Width (mm) | Side Runner size (mm) | Rung Size (mm) | Thicknss (mm) | standard Accessories |
---|---|---|---|---|---|
1 | 150 & 300 | 50/75 x 15/20/25 | 30 / 35 x 15 | 2.0 / 2.5 | ✔ |
2 | 450 | 50/62.50/75/100 x 20/25 | 35/50 x 15/20 | 2.0 / 2.5 | ✔ |
3 | 600 | 50/62.50/75/100 x 20/25 | 35/50 x 15/20 | 2.0 / 2.5 / 3.0 | ✔ |
4 | 750 | 50/62.50/75/100 x 20/25 | 35/50 x 20 | 2.5 / 3.0 | ✔ |

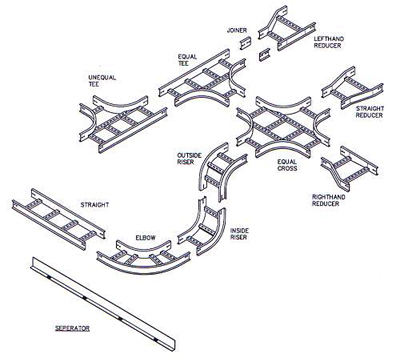

Accessories For Ladder Type Cable Trays

Note:
-
The dimensions mentioned are standard dimensions. Any other customized dimensions are possible as per requirement.
-
The application of Ladder & Perforated type cable trays are in industrial, Oil & gas, Energy, Commercial & residential projects.
-
Material of construction is as per IS 1079, 2062, SS 304/316 & Aluminum.
-
Finishes : Hot Dip Galvanized (HDG), Pre Galvanized (GP), Painted & Powder Coated.
B) Perforated Cable Trays with Accessories

The standard range of Perforated cable , trays manufactured by us are as stated below along with its required accessories
Sr No. | Width (mm) | Height (mm) | Thicknss (mm) | standard Accessories |
---|---|---|---|---|
1 | 50 / 100 / 150 / 200 | 20 / 25 | 1.6 / 2.0 | ✔ |
2 | 300 / 450 | 25 / 50 | 2.0 / 2.5 | ✔ |
3 | 600 / 750 | 50 / 75 | 2.0 / 2.5 / 3.0 | ✔ |
4 | 1000 | 75/100 | 2.5 / 3.0 | ✔ |

Note:
-
The dimensions mentioned are standard dimensions. Any other customized dimensions are possible as per requirement.
-
The application of Ladder & Perforated type cable trays are in industrial, Oil & gas, Energy, Commercial & residential projects.
-
Material of construction is as per IS 1079, 2062, SS 304/316 & Aluminum.
-
Finishes : Hot Dip Galvanized (HDG), Pre Galvanized (GP), Painted & Powder Coated.
